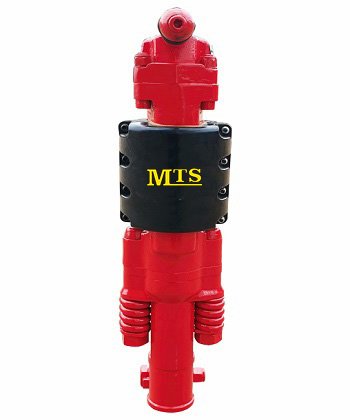

MTS 1240 - Pneumatic Breaker



Specification-All Models

  • Forged steel housing withstand rugged use.
  • Low weight ,high torque.
  • Very reliable and resistant to wear
  • Large sliding face,high impact energy
  • Good penetration in hard and soft rock

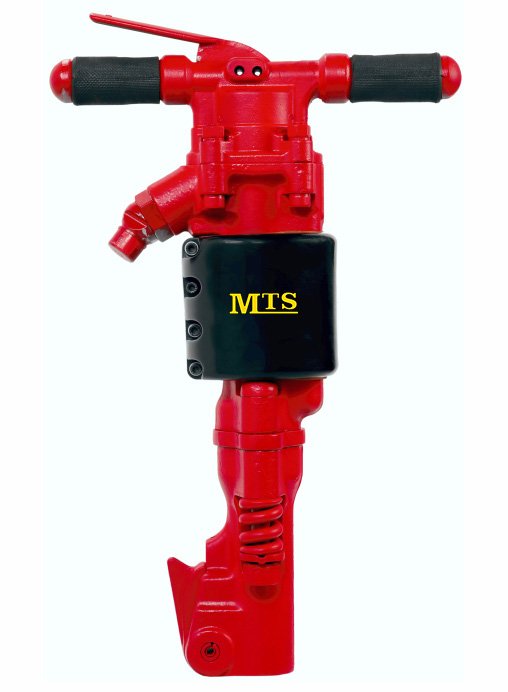

    • Model MTS 1210
    Weight with silencer 20 kg 44 lb
    Weight without silencer 19.4 kg 42.7 lb
    Length 609 mm 24"
    Air pressure 6 bar 87 psi
    Air consumption 23 l/s 48 cfm
    Blows per minute 1450
    Piston dia 48 mm 1.90"
    Piston stroke 108 mm 4.25"
    Air inlet (BSP thread) 19 mm 3/4"
    Shank size (standard) - 8900 0030 04 25 x 108 mm 1" x 4¼”
    Shank size (option 1) - 8900 0030 07 28 x 160 mm 1¹⁄8″ x 6¼”
    Shank size (option 2) - 8900 0030 09 32 x 160 mm 1¼” x 6¼”










    Application Of MTS-1210

  • Low Spare parts consumption .
  • Blower for deep hole clearing
  • Robust kick-latch type retainers
  • Long stroke machine
  • Light weight ,low maintenance
