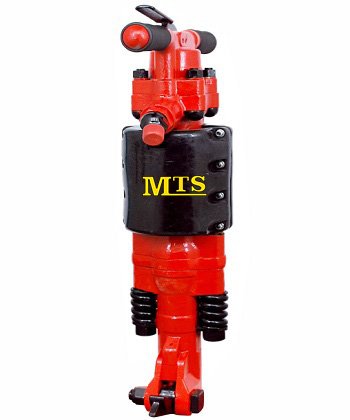

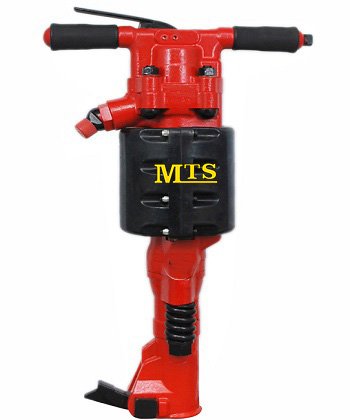

MTS 1230 - Pneumatic Breaker



Specification-All Models

  • Forged steel housing withstand rugged use.
  • Low weight ,high torque.
  • Very reliable and resistant to wear
  • Large sliding face,high impact energy
  • Good penetration in hard and soft rock
    • Model MTS 1230
    Weight with silencer 30 kg 66 lb
    Weight without silencer 29 kg 64 lb
    Length 660 mm 26"
    Air pressure 6 bar 87 psi
    Air consumption 30 l/s 64 cfm
    Blows per minute 1350
    Piston dia 60.3 mm 2.40″
    Piston stroke 140 mm 5.50″
    Air inlet (NPT) 19 mm 3/4″
    Shank size (standard) - T022159 32 x 160 mm 1¼” x 6¼”
    Shank size (option) - T022158 28 x 160 mm 1¹⁄8″ x 6¼”
    Retainer type Latch










    Application Of MTS-1210

  • Low Spare parts consumption .
  • Blower for deep hole clearing
  • Robust kick-latch type retainers
  • Long stroke machine
  • Light weight ,low maintenance
