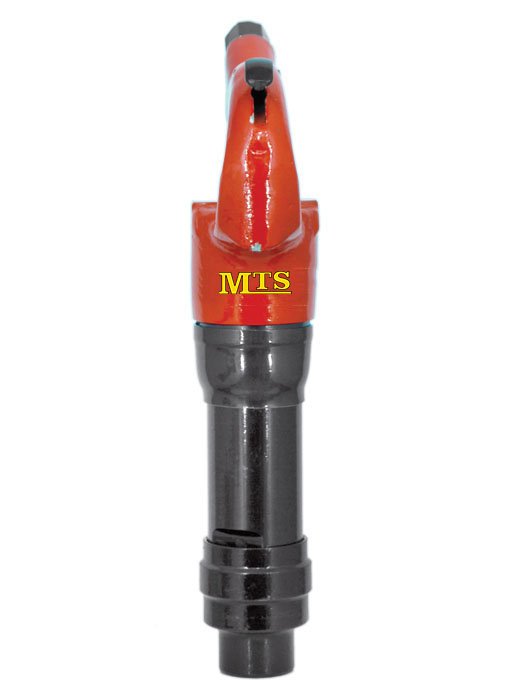

MTS 4123 -chipping-hammer



Specification-All Models

  • Forged steel housing withstand rugged use.
  • Low weight ,high torque.
  • Very reliable and resistant to wear
  • Large sliding face,high impact energy
  • Good penetration in hard and soft rock
    • Model # MTS 4123 2H/2R MTS 4123 3H/3R MTS 4123 4H/4R
    Weight 7 kg (15 lb) 8 kg (17.65 lb) 8.65 kg (19 lb)
    Length 375 mm (14.8") 426 mm (16.75") 460 mm (18.1")
    Blows per minute 2500 2050 1600
    Piston stroke 50.8 mm (2") 76.2 mm (3") 101.6 mm (4")
    Air pressure 6.2 bar (90 PSI)
    Air consumption 14 l/s (30 cfm)
    Piston dia 28.6 mm (1.13")
    Air inlet (BSP thread) 9.5 mm (3/8")
    Retainer type Spring
    Shank Hex 14.7 mm (0.580") | Round 17.3 mm (0.680")
    Ref. Part # 8900 0001 05 8900 0001 07 8900 0001 09
    Ref. Part # 8900 0001 04 8900 0001 06 8900 0001 08











    Application Of MTS-1210

  • Low Spare parts consumption .
  • Blower for deep hole clearing
  • Robust kick-latch type retainers
  • Long stroke machine
  • Light weight ,low maintenance
